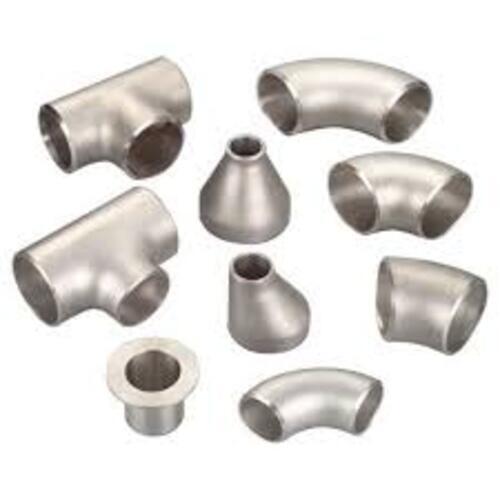

Corrosion Resistance SS Pipe Fittings

Name: Corrosion Resistance SS Pipe Fittings
Brand: STAR DEEP METAL
Price: 50 INR
Availability: InStock

250 INR/Piece

Get a Price/Quote

Product Details:

Bend Radius Standard and Custom (as per fitting type)
Flexibility Rigid
Coating Type Self-finish
Connection Type Butt Weld, Socket Weld, Screwed
Tensile Strength 520 MPa
Temperature Range -196C to +870C
Tolerance 0.05 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Corrosion Resistance SS Pipe Fittings Price And Quantity

Price 250 INR/Piece
Minimum Order Quantity 50 Piece

Corrosion Resistance SS Pipe Fittings Product Specifications

Material Stainless Steel
Temperature Range -196C to +870C
Product Type SS Pipe Fitting
Length 30 mm - 6000 mm (as per order)
Surface Treatment Polished, Pickled, Passivated
Material Grade SS304, SS316, SS316L, SS321
Tolerance 0.05 mm
Application Water, Oil, Gas, Chemicals
Rated Pressure PN6 - PN100 / 150 PSI - 1500 PSI
Yield Strength 205 MPa
Sealing Type Metal to Metal
Thread Type NPT, BSPT, BSP
Diameter DN6 - DN600
Shape Rectangular
Connection Welded, Threaded
Usage Industrial Piping, Plumbing, Chemical Processing
Section Shape Round
Bend Radius Standard and Custom (as per fitting type)
Color Silver
Thickness 1.2 mm - 10 mm
Flexibility Rigid
Coating Type Self-finish
Standard ASTM A403/A182, ANSI B16.9/B16.11
Connection Type Butt Weld, Socket Weld, Screwed
Tensile Strength 520 MPa
Outer Diameter 1/8 inch - 24 inch (custom on request)

Marking Grade, Size, Standard, Manufacturer's Logo
Installation Type Easy to install, requires standard piping tools
Leakage Test 100% Hydraulic & Pneumatic Tested
Manufacturing Process Cold/Hot Formed, Machined
Heat Treatment Solution annealed
Packaging Type Wooden Box, HDPE Bag, Bubble wrapped
End Finish Bevelled End, Plain End, Threaded End
Corrosion Resistance Excellent, suitable for marine and chemical environments

Corrosion Resistance SS Pipe Fittings Trade Information

Payment Terms Cash Advance (CA), Cheque, Cash in Advance (CID)
Supply Ability 1000 Piece Per Day
Delivery Time 10-15 Days
Main Domestic Market All India

Product Description

Established in the year 2001, we are known in the industry as a manufacturer and supplier of a wide range of Pipe Fittings. Excellent in quality, the offered fittings are manufactured using quality-assured steel that is obtained from reliable vendors of the industry. To suit various applications, the offered fittings are available with us in different sizes. These Pipe Fittings are delivered within committed time and are packed properly.

Features:

Easy installation
Corrosion resistance
Fine finish

Details:

We have different range of grade in pipe & pipe fittings:
AISI 202, 304, 304L, 316, 316L, 310, 321, 410, 420 & 421

Superior Corrosion Resistance for Demanding Environments

Designed with premium stainless steel grades like SS304 and SS316L, these pipe fittings deliver excellent resistance against corrosion, making them ideal for challenging marine and chemical settings. The polished, pickled, and passivated surface treatments further enhance protection, ensuring long-term integrity even when exposed to aggressive substances. This reliability means your piping systems maintain peak performance with reduced maintenance requirements.

Versatile End Connections & Easy Installation

Our SS pipe fittings come with a choice of beveled, plain, or threaded ends-including butt weld, socket weld, and threaded connections (NPT, BSPT, BSP). Installation is straightforward with standard piping tools. Precision manufacturing and tight tolerance (0.05 mm) ensure a secure fit, while custom sizes, bend radius, and thickness cater to varied project demands.

Stringent Testing & Quality Assurance

Each fitting is 100% hydraulically and pneumatically tested for leakage to guarantee zero-compromise sealing. Marking includes grade, size, standard, and manufacturer's logo for full traceability. Packaging options such as wooden boxes, HDPE bags, or bubble wrap safeguard product quality during transit and storage, ensuring fittings arrive ready for immediate installation.

FAQ's of Corrosion Resistance SS Pipe Fittings:

Q: How are corrosion-resistant SS pipe fittings tested for reliability?

A: Every fitting undergoes 100% hydraulic and pneumatic leakage testing, in addition to strict quality checks for dimensional tolerances, surface finish, and material properties, ensuring reliable performance in demanding environments like marine and chemical processing.

Q: What makes these SS pipe fittings suitable for marine and chemical applications?

A: Manufactured from corrosion-resistant grades such as SS316 and SS316L, and treated with polishing, pickling, and passivation, these fittings withstand aggressive agents commonly encountered in marine and chemical industries, maintaining structural integrity over time.

Q: When should I choose beveled, plain, or threaded end fittings?

A: Beveled ends are ideal for welding applications, plain ends for standard slip-on connections, and threaded ends for systems requiring frequent assembly/disassembly. Your choice depends on installation requirements and future maintenance considerations.

Q: Where can these SS pipe fittings be used?

A: They are widely used in industrial piping, chemical processing, plumbing, oil and gas transportation, and any situation requiring high resistance to corrosion, including both onshore and offshore environments.

Q: What is the manufacturing process for these fittings?

A: The fittings are produced through cold and hot forming, followed by precise machining. Heat treatment like solution annealing is applied, and each component receives finishing treatments-polishing, pickling, and passivation-to meet high-quality standards.

Q: How easy is it to install these stainless steel pipe fittings?

A: These fittings are designed for straightforward installation with standard piping tools. The variety of end types and connection options ensures compatibility with existing systems, simplifying the setup process.

Q: What are the main benefits of using these corrosion-resistant SS fittings?

A: Key advantages include excellent corrosion resistance, high mechanical strength, long service life, low maintenance needs, and compatibility with a wide range of industrial fluids and gases under varying temperatures and pressures.
